Hier wird aufgezeigt wie ein Jail für N4F installiert wird.
RaspberryPi IPCam
|
1 |
sudo apt-get install subversion-tools libjpeg8-dev imagemagick |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 |
svn co https://svn.code.sf.net/p/mjpg-streamer/code/mjpg-streamer/ mjpg-streamer A mjpg-streamer/mjpg_streamer.c A mjpg-streamer/plugins A mjpg-streamer/plugins/input_control A mjpg-streamer/plugins/input_control/dynctrl.c A mjpg-streamer/plugins/input_control/dynctrl.h A mjpg-streamer/plugins/input_control/uvc_compat.h A mjpg-streamer/plugins/input_control/uvcvideo.h A mjpg-streamer/plugins/input_control/Makefile A mjpg-streamer/plugins/input_control/input_uvc.c A mjpg-streamer/plugins/output_file A mjpg-streamer/plugins/output_file/output_file.c A mjpg-streamer/plugins/output_file/Makefile A mjpg-streamer/plugins/output_file/examples A mjpg-streamer/plugins/output_file/examples/ftp_upload.sh A mjpg-streamer/plugins/output_file/examples/show_filename.sh A mjpg-streamer/plugins/output_file/examples/change_filename.sh A mjpg-streamer/plugins/output_http A mjpg-streamer/plugins/output_http/output_http.c A mjpg-streamer/plugins/output_http/httpd.c A mjpg-streamer/plugins/output_http/httpd.h A mjpg-streamer/plugins/output_http/Makefile A mjpg-streamer/plugins/output_viewer A mjpg-streamer/plugins/output_viewer/output_viewer.c A mjpg-streamer/plugins/output_viewer/Makefile A mjpg-streamer/plugins/input_gspcav1 A mjpg-streamer/plugins/input_gspcav1/utils.c A mjpg-streamer/plugins/input_gspcav1/utils.h A mjpg-streamer/plugins/input_gspcav1/spcaframe.h A mjpg-streamer/plugins/input_gspcav1/spcav4l.c A mjpg-streamer/plugins/input_gspcav1/encoder.c A mjpg-streamer/plugins/input_gspcav1/marker.c A mjpg-streamer/plugins/input_gspcav1/spcav4l.h A mjpg-streamer/plugins/input_gspcav1/input_gspcav1.c A mjpg-streamer/plugins/input_gspcav1/encoder.h A mjpg-streamer/plugins/input_gspcav1/huffman.c A mjpg-streamer/plugins/input_gspcav1/jconfig.h A mjpg-streamer/plugins/input_gspcav1/marker.h A mjpg-streamer/plugins/input_gspcav1/quant.c A mjpg-streamer/plugins/input_gspcav1/huffman.h A mjpg-streamer/plugins/input_gspcav1/readme.spcacat A mjpg-streamer/plugins/input_gspcav1/jdatatype.h A mjpg-streamer/plugins/input_gspcav1/Makefile A mjpg-streamer/plugins/input_gspcav1/quant.h A mjpg-streamer/plugins/input.h A mjpg-streamer/plugins/output.h A mjpg-streamer/plugins/output_autofocus A mjpg-streamer/plugins/output_autofocus/processJPEG_onlyCenter.c A mjpg-streamer/plugins/output_autofocus/output_autofocus.c A mjpg-streamer/plugins/output_autofocus/processJPEG_onlyCenter.h A mjpg-streamer/plugins/output_autofocus/Makefile A mjpg-streamer/plugins/output_rtsp A mjpg-streamer/plugins/output_rtsp/output_rtsp.c A mjpg-streamer/plugins/output_rtsp/rtsp.c A mjpg-streamer/plugins/output_rtsp/Makefile A mjpg-streamer/plugins/output_udp A mjpg-streamer/plugins/output_udp/output_udp.c A mjpg-streamer/plugins/output_udp/Makefile A mjpg-streamer/plugins/input_testpicture A mjpg-streamer/plugins/input_testpicture/testpictures.h A mjpg-streamer/plugins/input_testpicture/input_testpicture.c A mjpg-streamer/plugins/input_testpicture/Makefile A mjpg-streamer/plugins/input_testpicture/pictures A mjpg-streamer/plugins/input_testpicture/pictures/960x720_2.jpg A mjpg-streamer/plugins/input_testpicture/pictures/160x120_1.jpg A mjpg-streamer/plugins/input_testpicture/pictures/160x120_2.jpg A mjpg-streamer/plugins/input_testpicture/pictures/320x240_1.jpg A mjpg-streamer/plugins/input_testpicture/pictures/320x240_2.jpg A mjpg-streamer/plugins/input_testpicture/pictures/640x480_1.jpg A mjpg-streamer/plugins/input_testpicture/pictures/640x480_2.jpg A mjpg-streamer/plugins/input_testpicture/pictures/960x720_1.jpg A mjpg-streamer/plugins/input_uvc A mjpg-streamer/plugins/input_uvc/dynctrl.c A mjpg-streamer/plugins/input_uvc/dynctrl.h A mjpg-streamer/plugins/input_uvc/jpeg_utils.c A mjpg-streamer/plugins/input_uvc/uvc_compat.h A mjpg-streamer/plugins/input_uvc/v4l2uvc.c A mjpg-streamer/plugins/input_uvc/huffman.h A mjpg-streamer/plugins/input_uvc/uvcvideo.h A mjpg-streamer/plugins/input_uvc/jpeg_utils.h A mjpg-streamer/plugins/input_uvc/v4l2uvc.h A mjpg-streamer/plugins/input_uvc/Makefile A mjpg-streamer/plugins/input_uvc/input_uvc.c A mjpg-streamer/plugins/input_file A mjpg-streamer/plugins/input_file/input_file.c A mjpg-streamer/plugins/input_file/Makefile A mjpg-streamer/utils.c A mjpg-streamer/LICENSE A mjpg-streamer/www A mjpg-streamer/www/sidebarbg.gif A mjpg-streamer/www/style.css A mjpg-streamer/www/JQuerySpinBtn.js A mjpg-streamer/www/jquery.js A mjpg-streamer/www/stream.html A mjpg-streamer/www/favicon.ico A mjpg-streamer/www/JQuerySpinBtn.css A mjpg-streamer/www/videolan.html A mjpg-streamer/www/stream_simple.html A mjpg-streamer/www/rotateicons.png A mjpg-streamer/www/jquery.ui.core.min.js A mjpg-streamer/www/jquery.ui.tabs.min.js A mjpg-streamer/www/javascript_simple.html A mjpg-streamer/www/cambozola.jar A mjpg-streamer/www/functions.js A mjpg-streamer/www/java_control.html A mjpg-streamer/www/java.html A mjpg-streamer/www/jquery.rotate.js A mjpg-streamer/www/static.html A mjpg-streamer/www/jquery.ui.custom.css A mjpg-streamer/www/java_simple.html A mjpg-streamer/www/javascript_motiondetection.html A mjpg-streamer/www/LICENSE.txt A mjpg-streamer/www/static_simple.html A mjpg-streamer/www/control.htm A mjpg-streamer/www/spinbtn_updn.gif A mjpg-streamer/www/favicon.png A mjpg-streamer/www/javascript.html A mjpg-streamer/www/index.html A mjpg-streamer/www/example.jpg A mjpg-streamer/www/bodybg.gif A mjpg-streamer/www/jquery.ui.widget.min.js A mjpg-streamer/www/fix.css A mjpg-streamer/TODO A mjpg-streamer/mjpg_streamer.h A mjpg-streamer/start.sh A mjpg-streamer/utils.h A mjpg-streamer/CHANGELOG A mjpg-streamer/scripts A mjpg-streamer/scripts/make_deb.sh A mjpg-streamer/Makefile A mjpg-streamer/README Ausgecheckt, Revision 182. |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 |
pi@raspberrypivpn ~ $ cd mjpg-streamer/ pi@raspberrypivpn ~/mjpg-streamer $ ls -l insgesamt 88 -rw-r--r-- 1 pi pi 102 Jul 3 14:53 CHANGELOG -rw-r--r-- 1 pi pi 17987 Jul 3 14:53 LICENSE -rw-r--r-- 1 pi pi 5107 Jul 3 14:53 Makefile -rw-r--r-- 1 pi pi 15738 Jul 3 14:53 mjpg_streamer.c -rw-r--r-- 1 pi pi 3617 Jul 3 14:53 mjpg_streamer.h drwxr-xr-x 13 pi pi 4096 Jul 3 14:53 plugins -rw-r--r-- 1 pi pi 2631 Jul 3 14:53 README drwxr-xr-x 2 pi pi 4096 Jul 3 14:53 scripts -rwxr-xr-x 1 pi pi 4630 Jul 3 14:53 start.sh -rw-r--r-- 1 pi pi 285 Jul 3 14:53 TODO -rw-r--r-- 1 pi pi 2866 Jul 3 14:53 utils.c -rw-r--r-- 1 pi pi 2399 Jul 3 14:53 utils.h drwxr-xr-x 2 pi pi 4096 Jul 3 14:53 www pi@raspberrypivpn ~/mjpg-streamer $ make gcc -D'SVN_REV="3:172"' -O2 -DLINUX -D_GNU_SOURCE -Wall -c -o mjpg_streamer.o mjpg_streamer.c gcc -D'SVN_REV="3:172"' -O2 -DLINUX -D_GNU_SOURCE -Wall -c -o utils.o utils.c gcc -D'SVN_REV="3:172"' -O2 -DLINUX -D_GNU_SOURCE -Wall mjpg_streamer.o utils.o -lpthread -ldl -o mjpg_streamer chmod 755 mjpg_streamer make -C plugins/input_uvc all make[1]: Entering directory `/home/pi/mjpg-streamer/plugins/input_uvc' gcc -c -O1 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o v4l2uvc.lo v4l2uvc.c v4l2uvc.c: In function âinit_videoInâ: v4l2uvc.c:88:23: warning: variable âcurrentHeightâ set but not used [-Wunused-but-set-variable] v4l2uvc.c:88:9: warning: variable âcurrentWidthâ set but not used [-Wunused-but-set-variable] gcc -c -O1 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o jpeg_utils.lo jpeg_utils.c gcc -c -O1 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o dynctrl.lo dynctrl.c gcc -O1 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o input_uvc.so input_uvc.c v4l2uvc.lo jpeg_utils.lo dynctrl.lo -ljpeg make[1]: Leaving directory `/home/pi/mjpg-streamer/plugins/input_uvc' cp plugins/input_uvc/input_uvc.so . make -C plugins/output_file all make[1]: Entering directory `/home/pi/mjpg-streamer/plugins/output_file' gcc -O2 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o output_file.so output_file.c make[1]: Leaving directory `/home/pi/mjpg-streamer/plugins/output_file' cp plugins/output_file/output_file.so . make -C plugins/output_udp all make[1]: Entering directory `/home/pi/mjpg-streamer/plugins/output_udp' gcc -O2 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o output_udp.so output_udp.c make[1]: Leaving directory `/home/pi/mjpg-streamer/plugins/output_udp' cp plugins/output_udp/output_udp.so . make -C plugins/output_http all make[1]: Entering directory `/home/pi/mjpg-streamer/plugins/output_http' gcc -c -O1 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o httpd.lo httpd.c gcc -O1 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o output_http.so output_http.c httpd.lo make[1]: Leaving directory `/home/pi/mjpg-streamer/plugins/output_http' cp plugins/output_http/output_http.so . make -C plugins/input_testpicture all make[1]: Entering directory `/home/pi/mjpg-streamer/plugins/input_testpicture' convert pictures/960x720_1.jpg -resize 640x480! pictures/640x480_1.jpg convert pictures/960x720_1.jpg -resize 320x240! pictures/320x240_1.jpg convert pictures/960x720_1.jpg -resize 160x120! pictures/160x120_1.jpg converting file: 160x120_1.jpg converting file: 320x240_1.jpg converting file: 640x480_1.jpg converting file: 960x720_1.jpg converting file: 160x120_2.jpg converting file: 320x240_2.jpg converting file: 640x480_2.jpg converting file: 960x720_2.jpg gcc -O2 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o input_testpicture.so input_testpicture.c make[1]: Leaving directory `/home/pi/mjpg-streamer/plugins/input_testpicture' cp plugins/input_testpicture/input_testpicture.so . make -C plugins/input_file all make[1]: Entering directory `/home/pi/mjpg-streamer/plugins/input_file' gcc -O2 -DLINUX -D_GNU_SOURCE -Wall -shared -fPIC -o input_file.so input_file.c make[1]: Leaving directory `/home/pi/mjpg-streamer/plugins/input_file' cp plugins/input_file/input_file.so . pi@raspberrypivpn ~/mjpg-streamer $ sudo make install install --mode=755 mjpg_streamer /usr/local/bin install --mode=644 input_uvc.so output_file.so output_udp.so output_http.so input_testpicture.so input_file.so /usr/local/lib/ install --mode=755 -d /usr/local/www install --mode=644 -D www/* /usr/local/www pi@raspberrypivpn ~/mjpg-streamer $ |
|
1 |
./mjpg_streamer -i "./input_uvc.so -n -y -f 15 -r 1280x720" -o "./output_http.so -n -w ./www -p 8060" |
danach einen reboot
|
1 |
sudo reboot |
und mit
|
1 2 3 4 5 6 7 8 9 10 11 |
pi@raspberrypivpn ~/mjpg-streamer $ ./mjpg_streamer -i "./input_uvc.so -n -y -f 15 -r 1280x720" -o "./output_http.so -n -w ./www -p 8060" MJPG Streamer Version: svn rev: 3:172 i: Using V4L2 device.: /dev/video0 i: Desired Resolution: 1280 x 720 i: Frames Per Second.: 15 i: Format............: YUV i: JPEG Quality......: 80 o: www-folder-path...: ./www/ o: HTTP TCP port.....: 8060 o: username:password.: disabled o: commands..........: disabled |
die Anwendung starten. Diese kann dann in einem screen gestartet werden damit die cam auch weiter läuft nachdem die console geschlossen wurde.

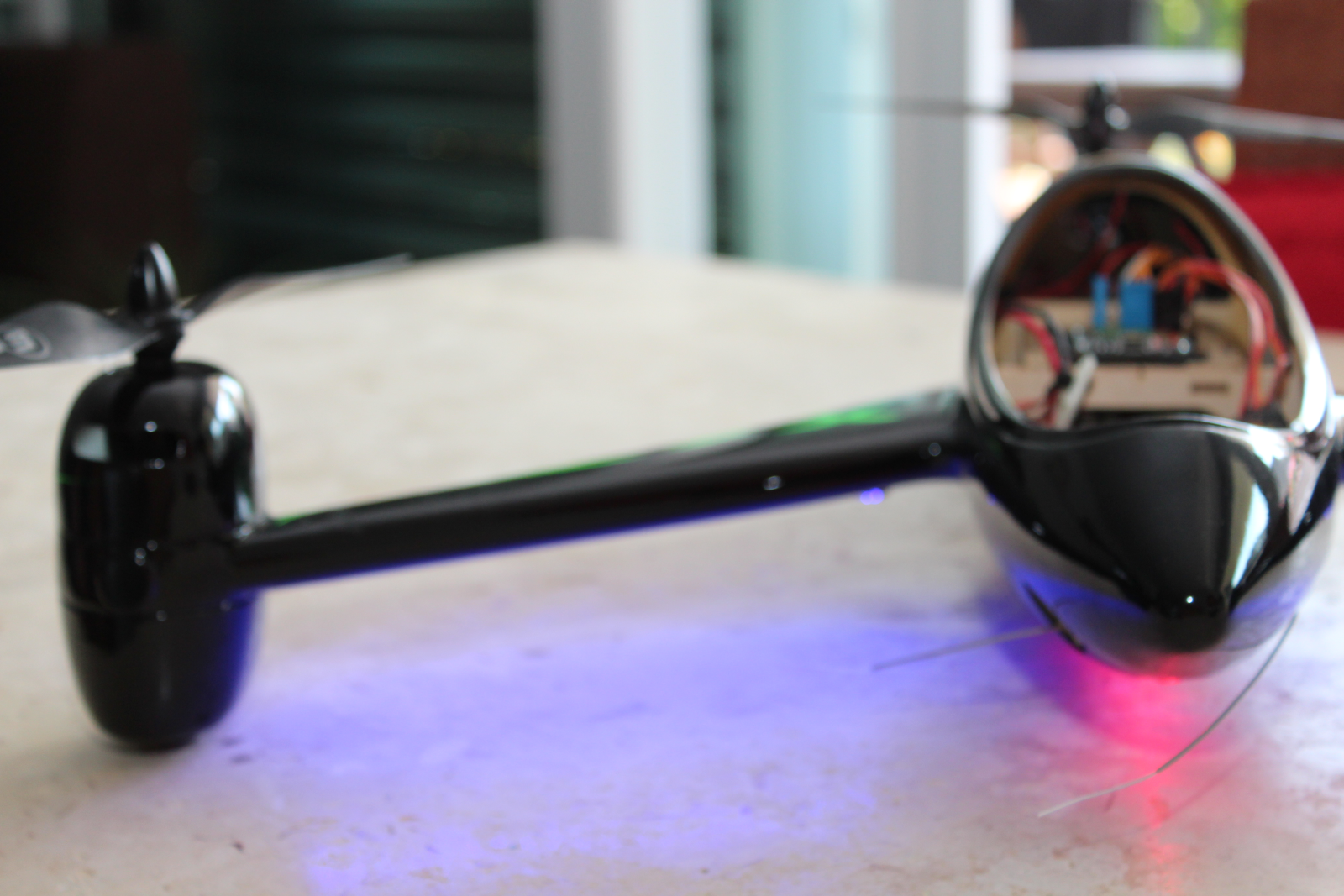

APM über Bluetooth verbinden.
Für die Verbindung mit dem APM Board über Bluetooth genügt der klassischer HC06 Dongle.
Die serielle Schnittstelle ist auf dem Board bereits vorhanden und es werden nur die Kontakte wie auf den Bildern beschrieben verbunden.
In diesem Fall Dupont Stecker auf der Dongle Seite und Hirose DF13 auf dem Board. Manche Boards haben stattdessen jedoch eine Molex PicoBladeTM Buchse. Hängt eben vom Hersteller dieser Klone ab.
19″ Server
Hardware:
- NAS SuperMicro SC743 – link
- IBM XServer 346 Xeon 3GHz 2GiB Serverraid 7k8840
- USV Pulsar M2200 RT2U + M ext AC230
- Avocent Cybex Switchview OSD 8-Port KVM Switch PS/2 KVM
- 48 FE + 2 GE + 2 GE Kombi SFP Web Smart Switch 48 Port
- Rack Console Viewer 15″ TFT Monitor+Tastatur Server Rack Tray
Homelab – Webserver / TS3 / Jabber / Minecraft
Hardware – Überlegungen
Intel NUC / Shuttle XH61V
Intel NUC:
- Box Canyon (DC3217BY) – Core i3-3217U – KEIN Netzwerk Anschluß – HDMI / Thunderbolt
- Ice Canyon (DC3217IYE) – Core i3-3217U – wie oben jedoch mit Netzwerkanschluß, ohne Thunderbolt
- Horse Canyon (DC53427HYE) – Core i5-3427U – Dual HDMI
- Skull Canyon (DC73537SY) – Core i7-3537U?) – noch nicht verfügbar
- Wilson Canyon I3 (D34010WYK) – Core i3-4010U – neueres Modell
- Wilson Canyon I5 (D54250WYK) – Core i5-4250U – neueres Modell
- ca. Preise: DC3217BY 140,- DC3217IY 225,- DC53427HYE 320,- DC733537SY ?? DC34010 245,- DC54250WYK 322,-
Craftbukkit auf Ubuntu
als Basis dient Ubuntu Server 13.10 (Saucy Salamander) als VM unter Proxmox
Der OpenSSH Server wurde direkt installiert.
Danach die X64 Java Version (tar.gz, nicht rpm) – link
|
1 2 3 4 5 6 7 8 |
cd /opt sudo mkdir java sudo mkdir java/64 cd ~ tar xvzf jre-7u51-linux-x64.tar.gz sudo mv ~/jre1.7.0_51 /opt/java/64 sudo update-alternatives --install "/usr/bin/java" "java" "/opt/java/64/jre1.7.0_51/bin/java" 1 sudo update-alternatives --set java /opt/java/64/jre1.7.0_51/bin/java |
McMyAdmin
McMyAdmin Updater – 2.2.0.0
The updater will download and install McMyAdmin to the current directory:
/home/buyenne/McMyAdmin).
Continue? [y/n] : y
Downloading latest McMyAdmin release…
Download: [####################] 100% (1453206 / 1453206 bytes)
Download Complete
Extracting files…
Extracting: [####################] 100% (75 / 75 Files)Extraction Complete
Running in 64-bit mode.
Notice : Detecting System…
Notice : No virtualized environment detected.
Notice : Linux Distribution: Ubuntu
Error : You are currently running McMyAdmin as an administrative user.
Error : It is strongly advised to run McMyAdmin as a restricted user.
Error : Startup will resume in 5 seconds…
Notice : Detection complete.
Notice : Detected Java runtime version 1.7.0
Warning : No Minecraft configuration file found (Normal on a first start)
Notice : Checking for Minecraft Server updates…
Notice : Requesting server ID… [Background]
Notice : Updating Minecraft server…
Notice : Downloading latest Minecraft server…
Noticead: Got server ID: b62f0a36-a5db-4e3c-a732-3f9edc19cd33
Noticead: Download complete.
Noticead: Download successful!
Notice : -configonly was specified, terminating.
Postfix Anpassung für 1und1
|
1 2 3 4 5 6 7 8 9 10 11 12 |
sudo nano /etc/postfix/main.cf myhostname = buyenne.de # 1und1 Anpassung relayhost = smtp.1und1.de smtp_sasl_auth_enable = yes smtp_sasl_password_maps = hash:/etc/postfix/sasl_passwd smtp_sasl_security_options = noanonymous # 1und1 Anpassung Ende |
